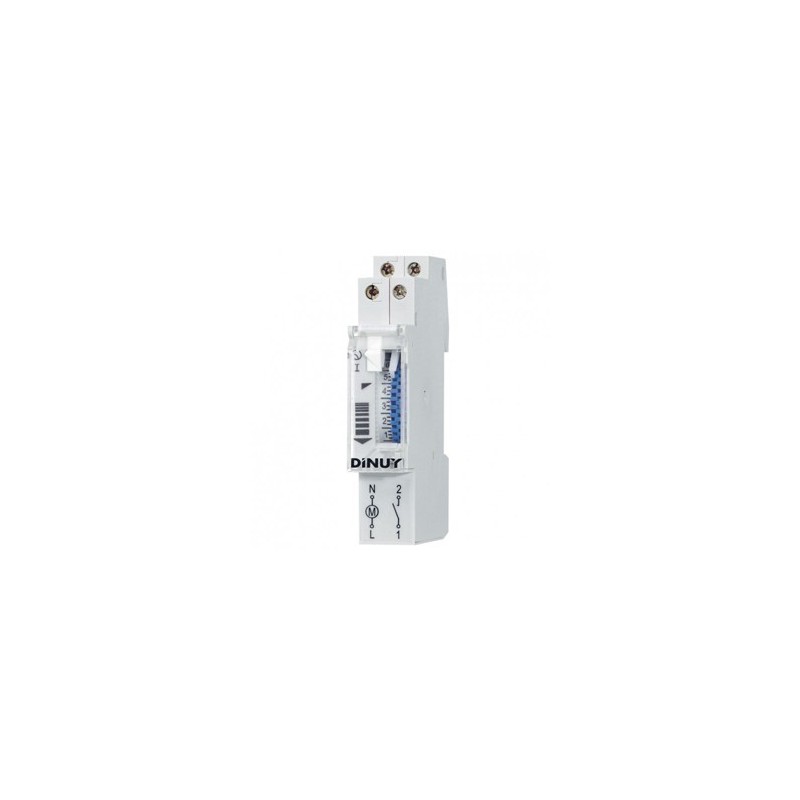

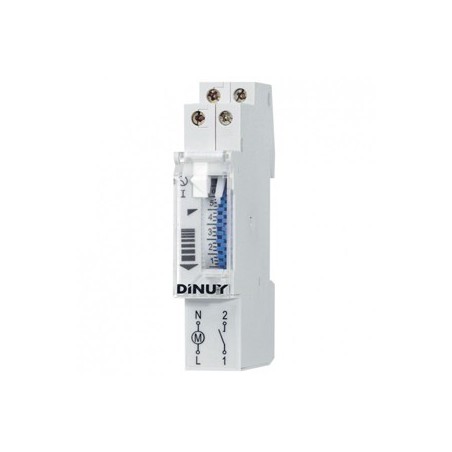

UNI T MODULE DINUY MODULE SWITCH WITHOUT RESERVATION
IH.UNI.T
012111503 PZ 8422447008777
27,56 € tax incl.
Rating
Read reviews (0)
- Loyalty points for this product
- No loyalty points
- A module width
- Manual switch: permanent or automatic ignition
- Without power reserve
- Simple programming with unmissable easels
- Easy reading of the programming made
- Simple installation
TECHNICAL CHARACTERISTICS
IH UNI T (111 120) | IH UNI QT (114 120) | |
Supply voltage | 230V ~ 50-60Hz | |
Own consumption | 0.4W | |
Sphere | Daily (24h) | |
Minute maneuver | 15 minutes | |
Functioning | Stepper motor, controlled by quartz | |
Accuracy of the march | <± 1.5sec / day (at 20ºC) | |
Power reserve | Without reservation | > 100h (at 20ºC) |
Connection terminals | With captive screws 4x4mm | |
Contacts | AgCdO | |
Cutting power | 16A / 250V ~ cosj = 1 | |
Glow | 2000W | |
Halogen | 900W | |
Fluorescence without condenser | 1000W | |
Inductive load | 2.5A cosj = 0.6 | |
Box | Extinguishable thermoplastic | |
Type of protection | IP20 according to DIN EN 60529 | |
Protection class | II if installed according to the standards | |
Weight | 120g | 125g |
Tª ambiente | -5ºC ~ + 50ºC | |
Dimensions | 45 x 17,5 x 58mm | |
Mounting on rail | 35mm section (DIN EN 50022) |
Data sheet
- Mounting
- Carril DIN
- MODULOS
- 1 Modulo
- Articulo
- Reloj
- Digital
- Analogico
- Canales
- 1 canal
- Reserva
- No
Reviews
No customer reviews for the moment.
Write a review

UNI T MODULE DINUY MODULE SWITCH WITHOUT RESERVATION
- A module width
- Manual switch: permanent or automatic ignition
- Without power reserve
- Simple programming with unmissable easels
- Easy reading of the programming made
- Simple installation
* Required fields
Realizar una pregunta sobre este producto
NO es necesario estar registrado
Si desea realizar cualquier pregunta sobre este producto o reportar algún tipo de incidencia con el mismo, pongase en contacto con nosotros rellenando el siguiente formulario.
(opcional)
*(Campo requerido para ser respondido)
30 other products in the same category:

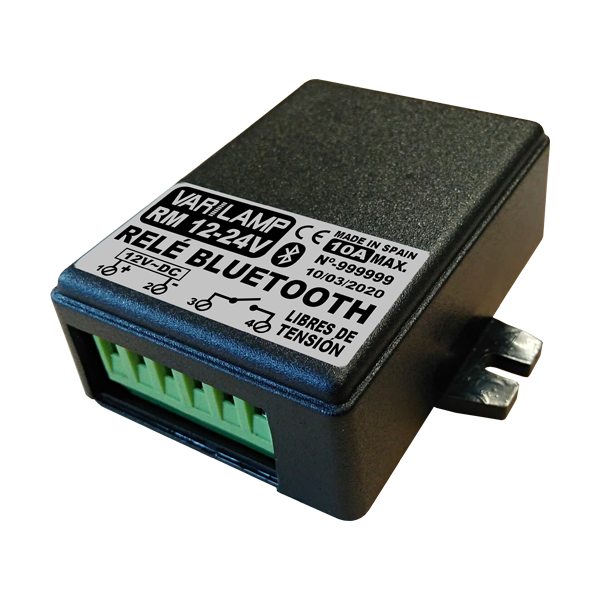

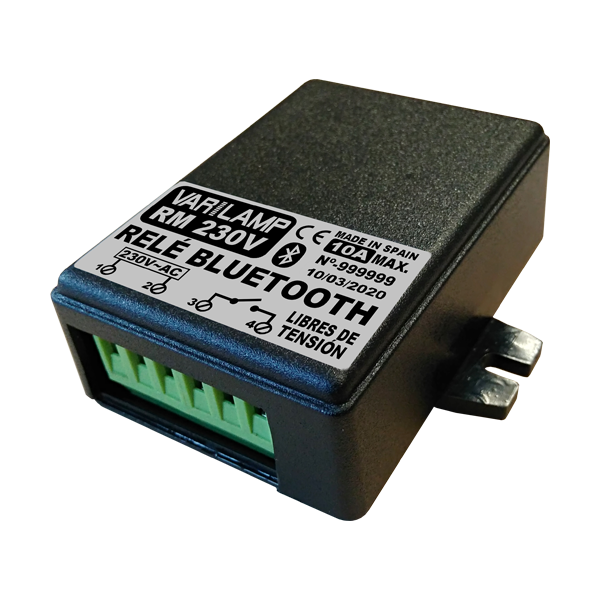

Multi-purpose Bluetooth relay...

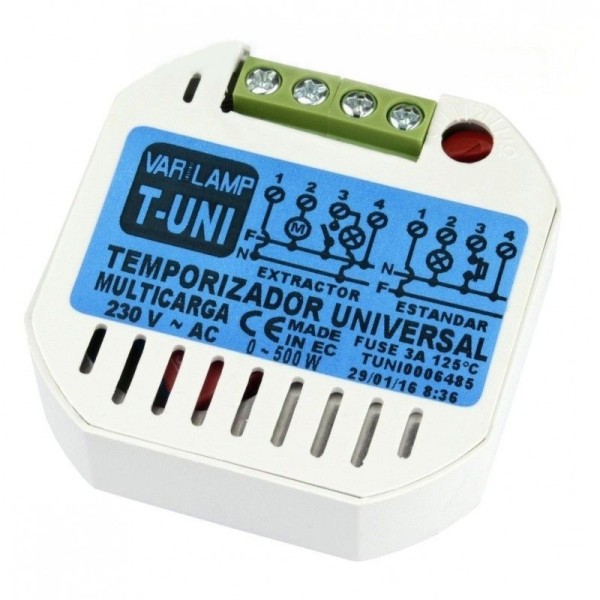

UNIVERSAL DUAL T-UNI Timer

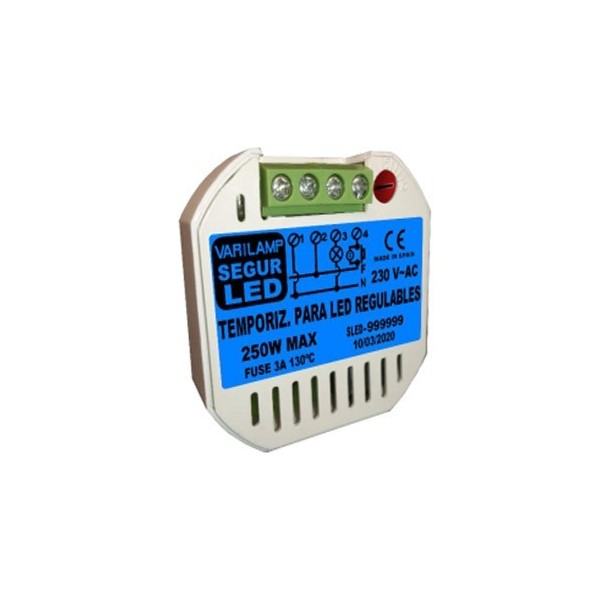

Safety timer for LED SEGUR LED 250

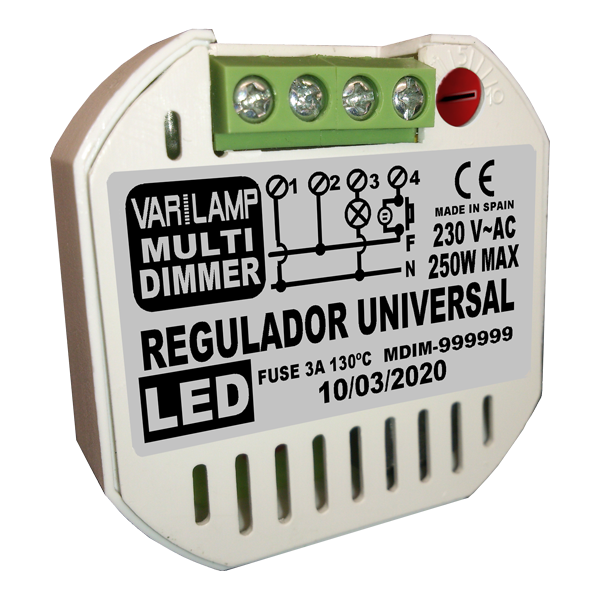

UNIVERSAL regulator for LED...

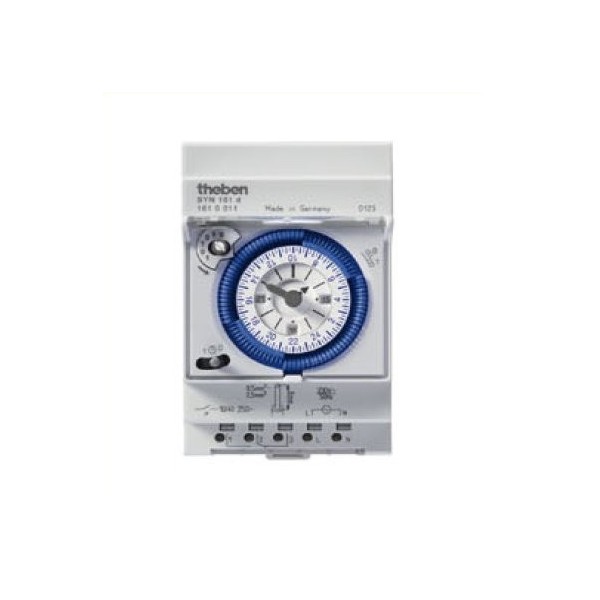

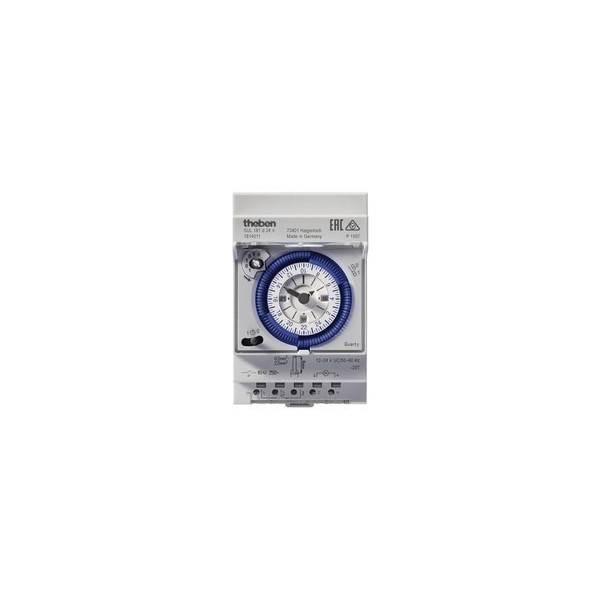

THEBEN SYN 161 D ANALOGIC TIME 3...

THEBEN SYN 181 D ANALOGIC TIME 3...

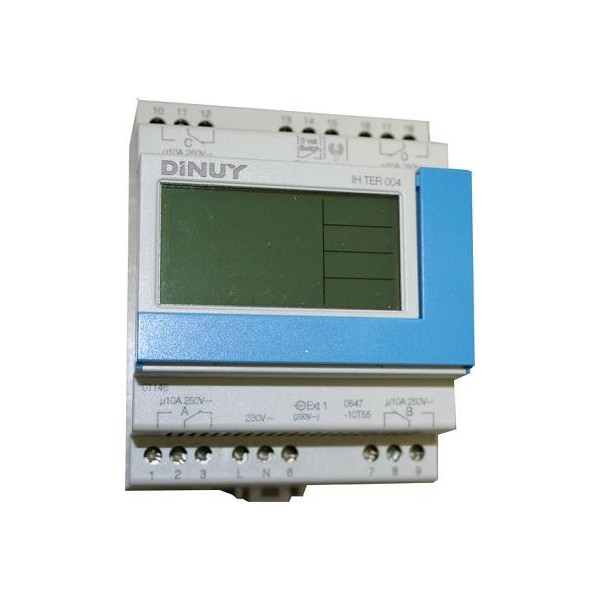

TERMINAL TIME SWITCH 2

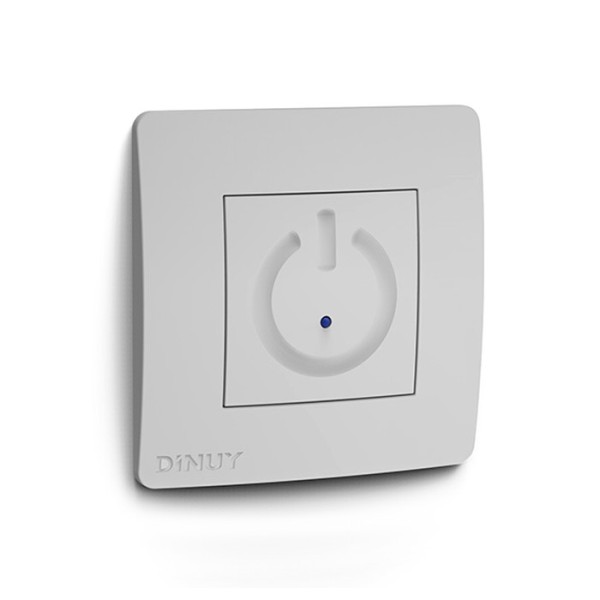

3-HILOS TOUCH TIMED PUSHER WITH...

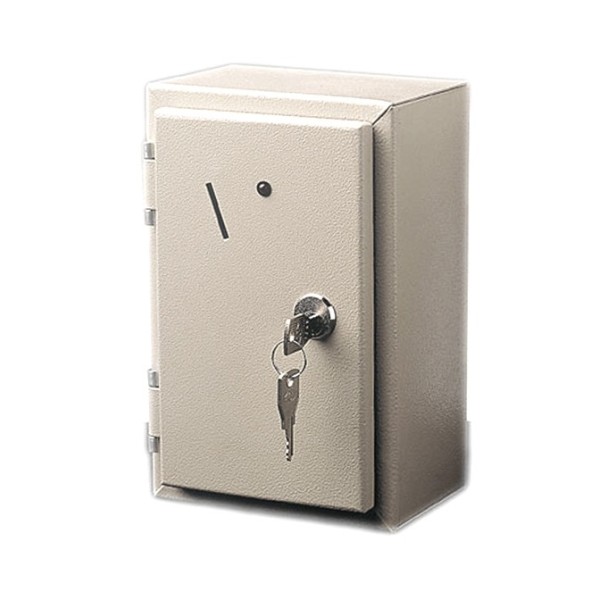

BASIC CURRENCY TIMER/COUNTER...

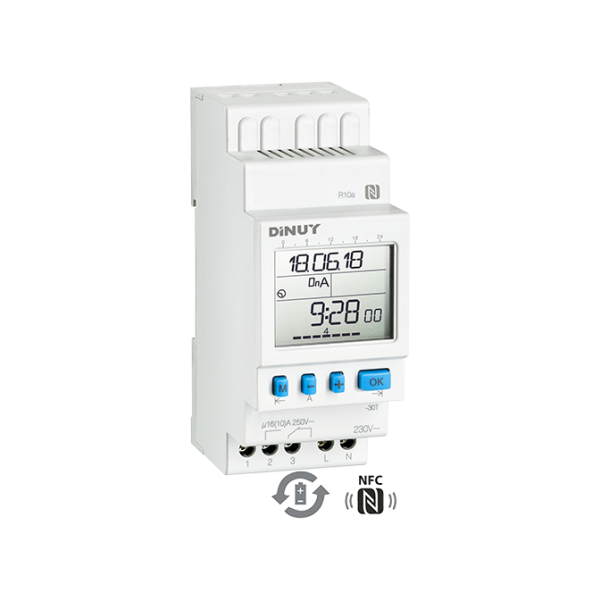

DAILY DIGITAL TIME SWITCH-WEEKLY...

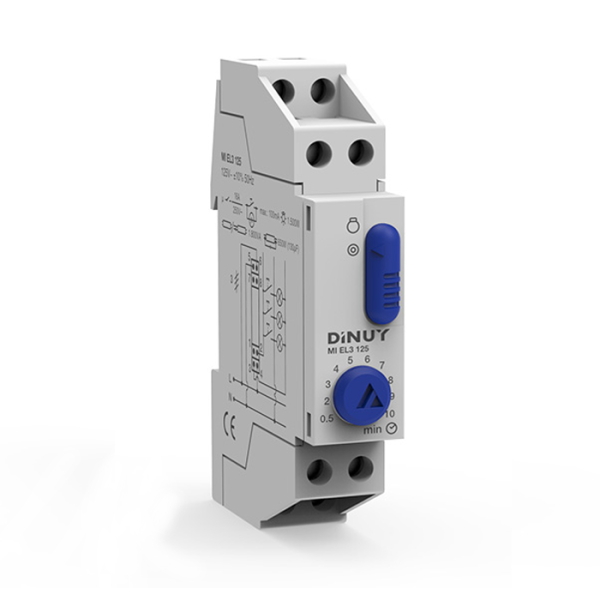

SCALE MINUTER EL3000 3/4H MI....

Ficha de seguridad para modelos...

Minutero de escalera ELPA 8...

Interruptor Crepuscular poste...

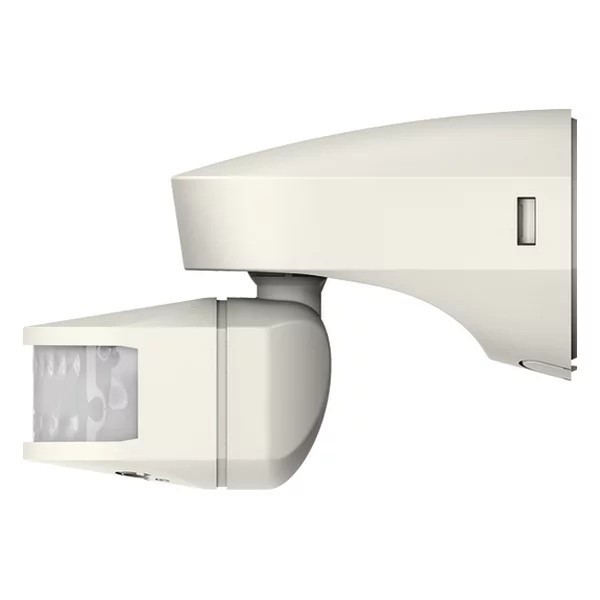

Detector montaje superficie con...

Detector montaje superficie...

Detector de movimiento TG MD360...

Detector de movimiento TG MD180...

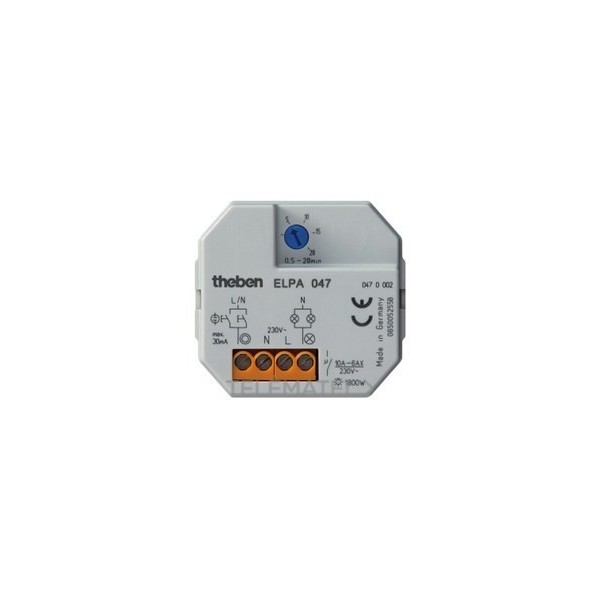

Minutero de escalera ELPA 047...

Interruptor horario digital 1...

Interruptor astronómico SELEKTA...

Interruptor horario analógico 3...

INTERRUPTOR HORARIO DIGITAL...

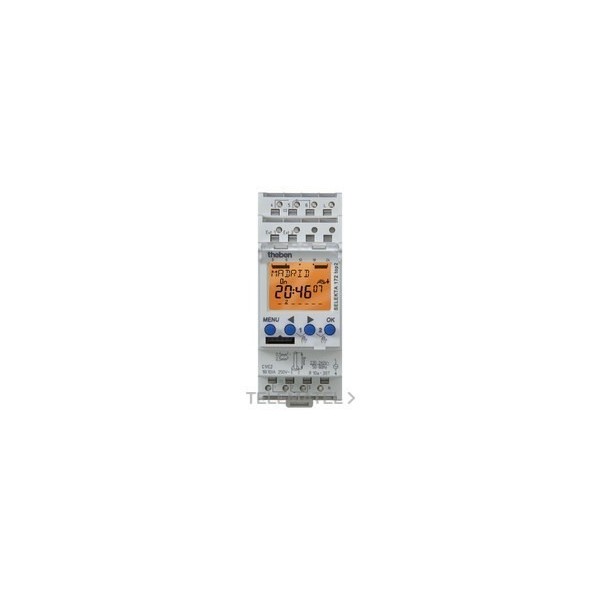

INTERRUPTOR SELEKTA 172 TOP2 2...

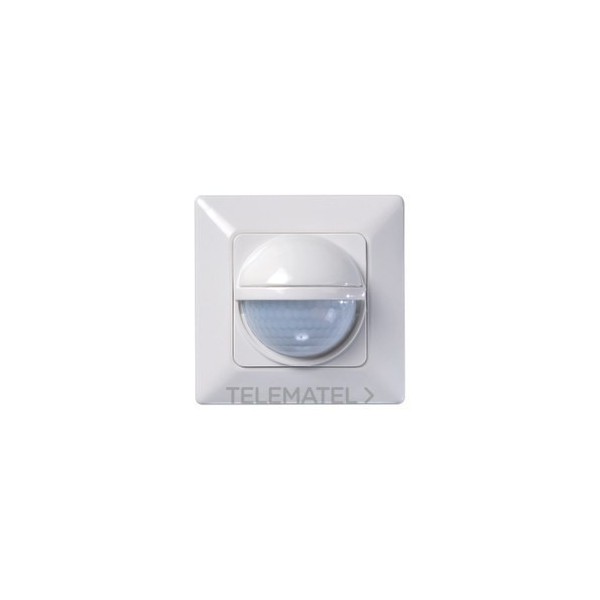

Detector montaje caja de...

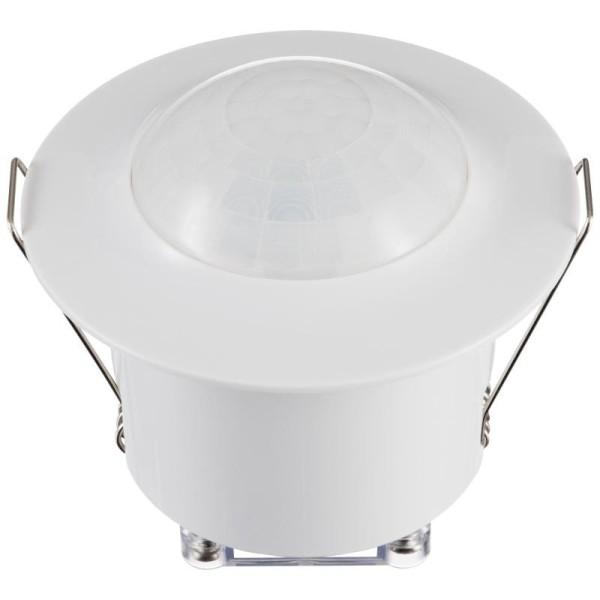

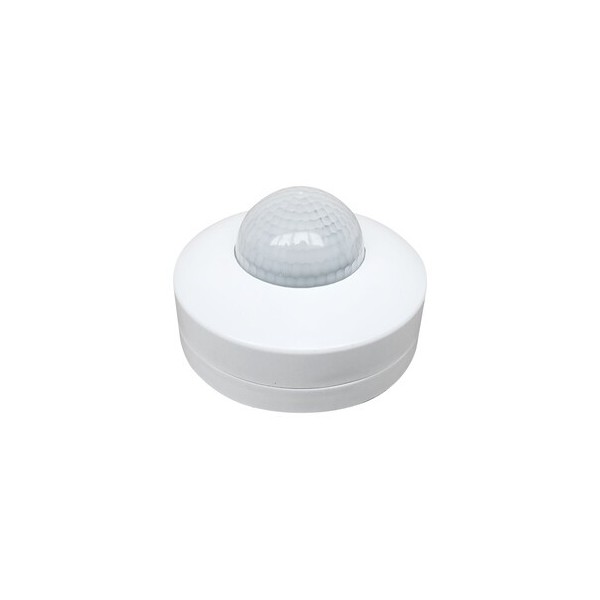

Detector mov.techo,infrarrojo.3...

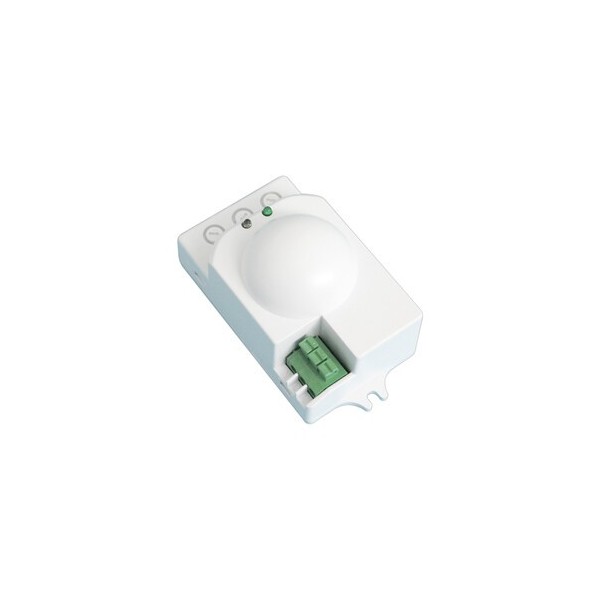

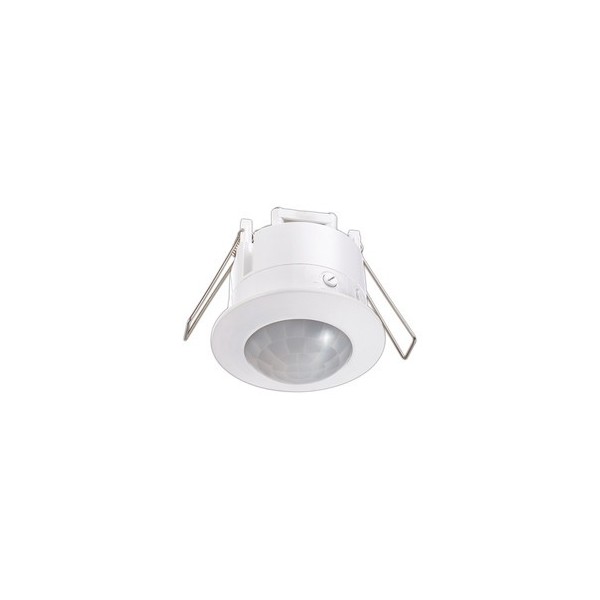

Detector movimiento por...

Detector de movimiento por...

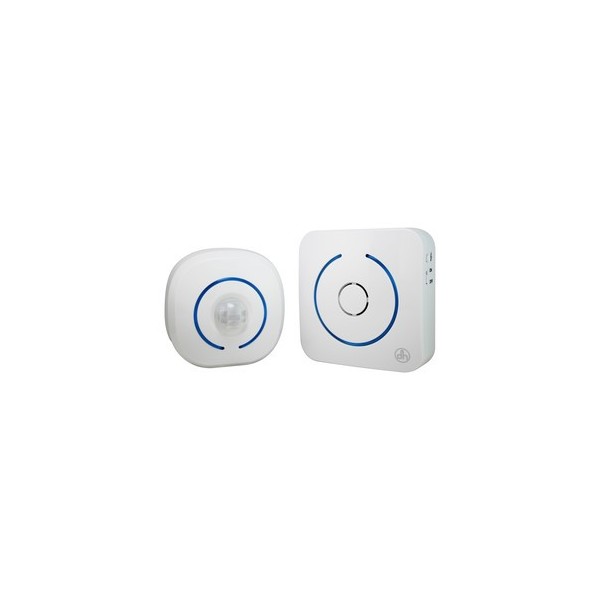

Avisador de presencia...
